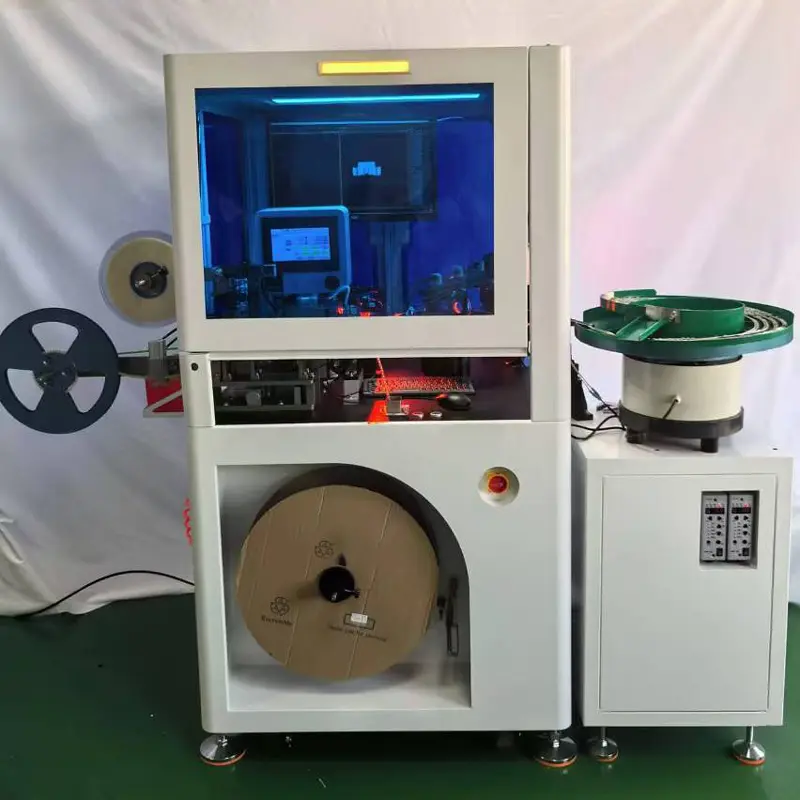

| Device Name | Fully automatic tape loading and weaving machine |
| Model | SY-1431 |

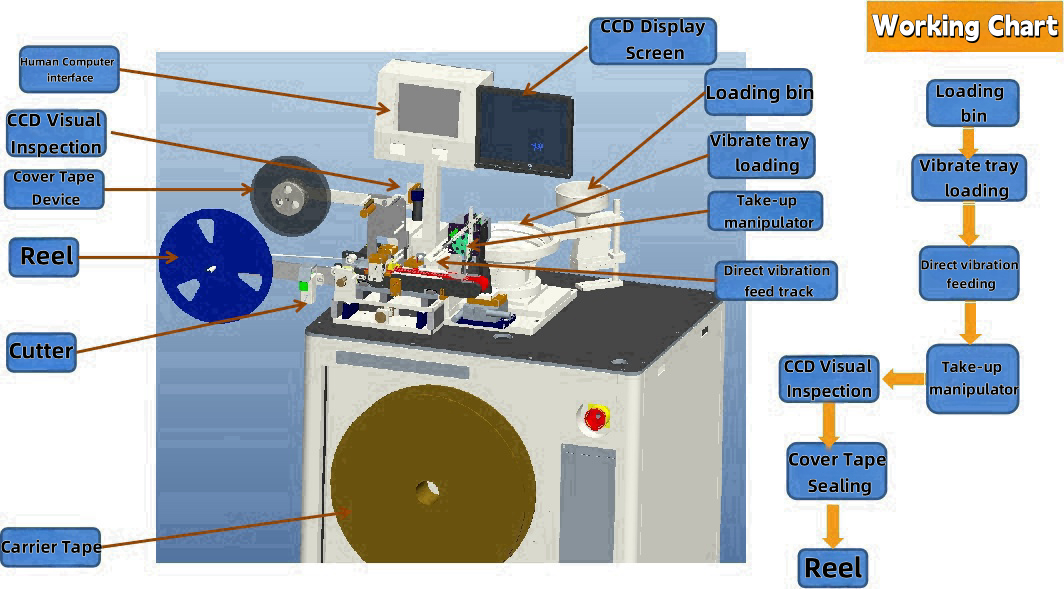

| Main Component | Loading bin, vibrating disc loading, material retrieval robot arm, direct vibration feeding track, CCD visual inspection, loading device, cutting blade |
| Working Pressure | 0.4-0.7MPa |
| Power Supply | 220V/800W |
| Speed | 50–1000pcs/min (Depending on the component) |
| Product Length | 3–23mm |
| Product Width | 3–23mm |
| Product Height | 1–10mm |
| Device Dimension | L1500 * W750 * H1750 (mm) |
| Device Weight | About 150KG |
| CCD Inspection | Detects direction, scratches, bad size, and more |
| Features | Easy adjustment, fast speed, high efficiency, durability, low noise |
Adopts advanced automatic technology to accomplish feeding, braiding, and sealing automatically, reducing manual operation and improving production efficiency.
Accurately places different SMD/SMT electronic components into various carrier tapes. Adapts to different specifications and sizes with excellent applicability.
Monitors direction, scratches, and size defects via a CCD display screen after packaging to ensure 100% product quality.
Significant reduction in labor costs through automation while maximizing packaging output and reducing material waste.
