PCB-1071M5 Brass SMD Patch Terminal High Current Power Type Conductive Bracket Screw Type Metal Stamping Parts

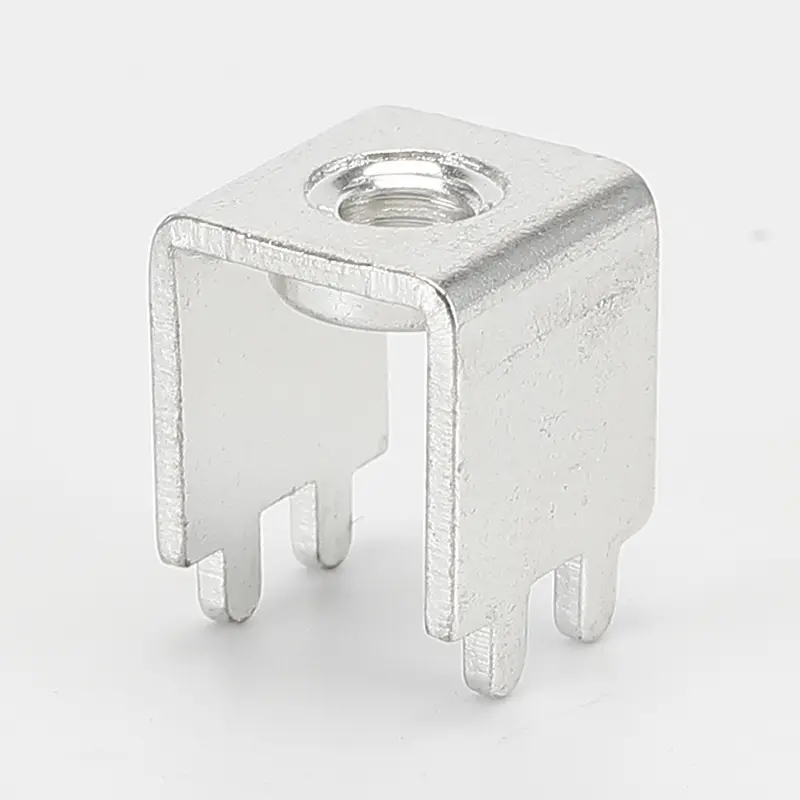

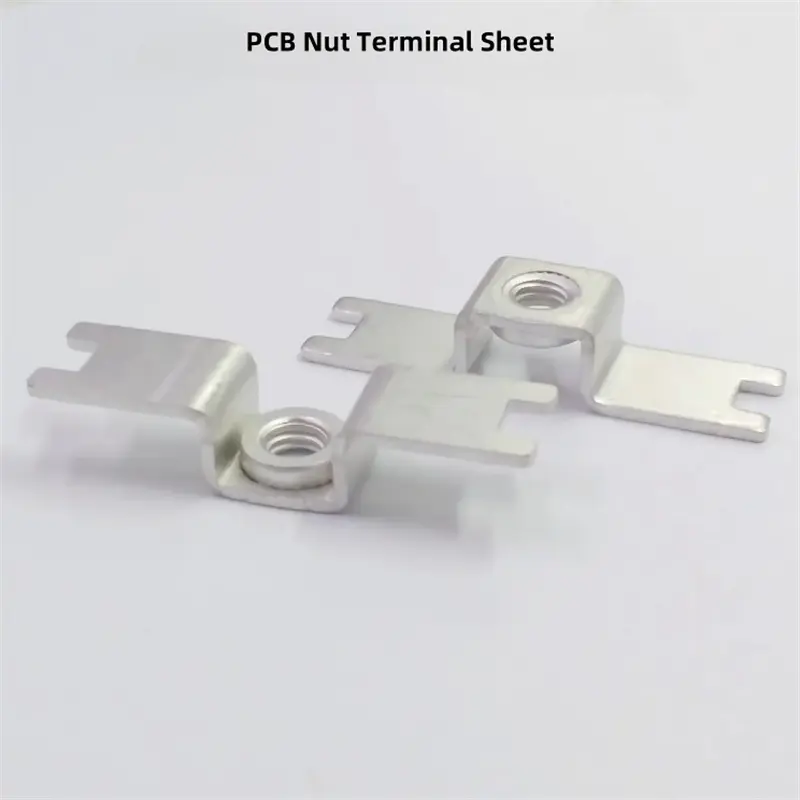

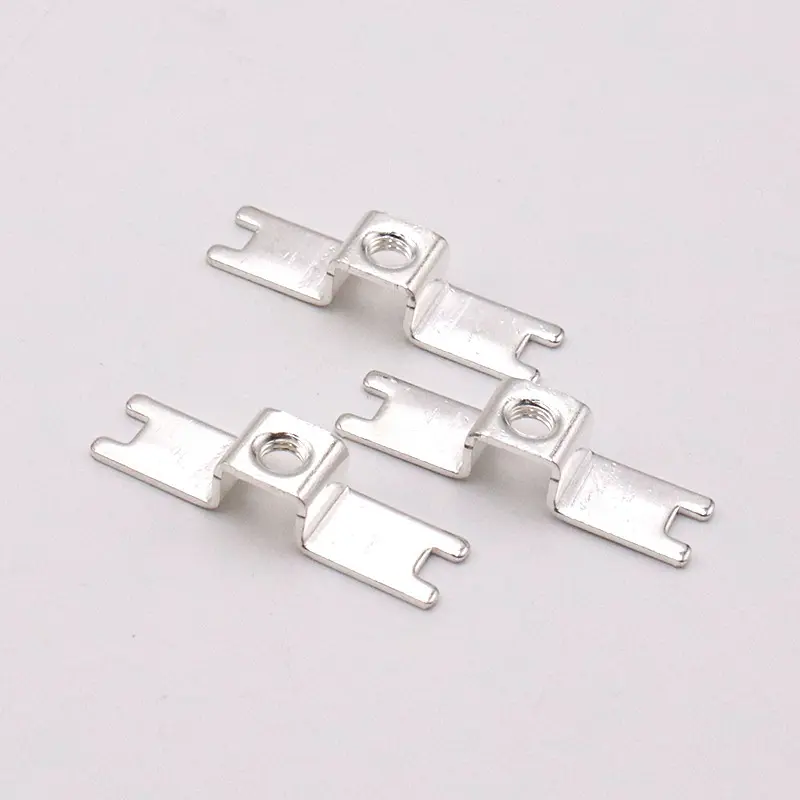

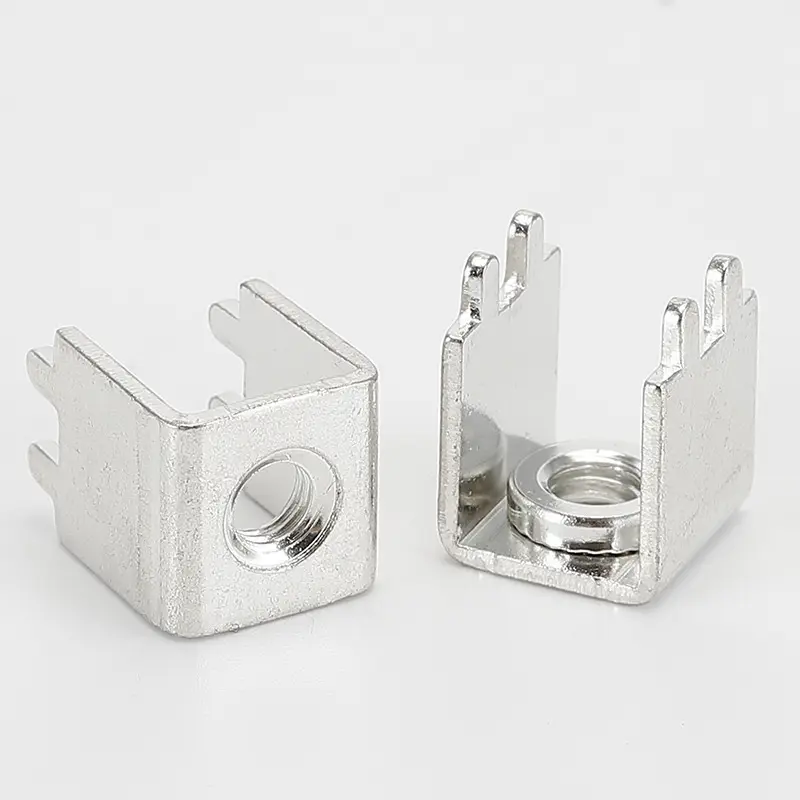

PCB-1071M5 Brass SMD patch terminals are nut terminals made of brass material and designed for use with Surface Mount Technology (SMT). They are usually affixed to the circuit board by soldering or other means to provide mechanical and electrical connections.

Send Inquiry

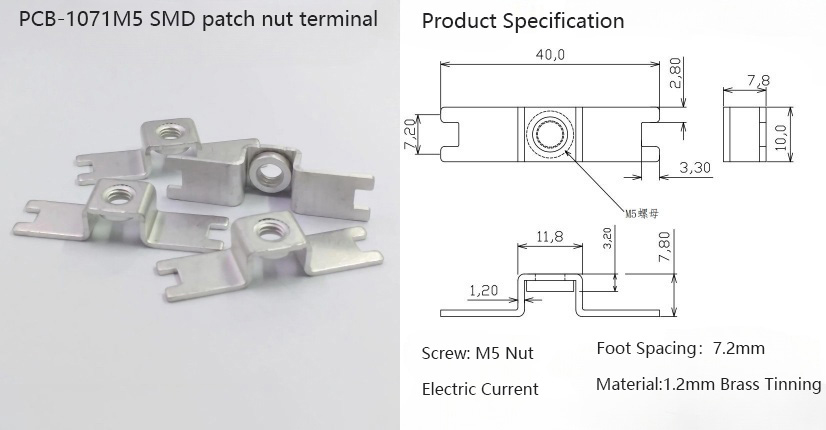

Product Description

Model	PCB—1071
Material	Brass tinning
Screw	M5 Nut
Foot Spacing	7.2mm
Electric Current	100A
Weight	About 5.2g/pcs

Features and Advantages Of PCB-1071M5 SMD Patch Nut Terminal

✔

Material: Made of brass, with good electrical conductivity and mechanical strength.

✔

Surface Mount Technology: Designed for SMT and suitable for automated production lines.

✔

Corrosion Resistance: Brass provides excellent environmental durability.

✔

High Reliability: Stable mechanical and electrical connections for long-term circuit reliability.

✔

Easy to Install: Engineered for easy assembly, maintenance, and replacement.

Summarize: Brass patch nut terminals are essential electronic components widely used in various equipment. Their conductivity and strength make them ideal for modern PCB applications.

Our Advantages

🚀

Factory Direct Sale: Internal production and inspection ensure quality without middleman costs.

🛡️

Quality Guarantee: Professional QC teams and advanced testing equipment.

🛠️

Custom Support: Tailored services to meet specific technical requirements.

🤝

Professional Service: Comprehensive support to solve technical concerns.

📦

Carrier Tape Packaging: Professional carrier tape manufacturing for superior component protection.

About Customized Services

Specializing in the design and production of various nut terminals. For custom needs, provide your specific technical documents. Our design team handles mold opening, sampling, and modifications until your requirements are fully met.

Frequently Asked Questions

1. What materials are used for the PCB-1071 nut terminals?

The terminals are made of high-quality brass with tin plating for optimal conductivity and corrosion resistance.

2. Is the PCB-1071 compatible with automated assembly?

Yes, it is designed specifically for Surface Mount Technology (SMT) and is compatible with automated production lines.

3. What is the maximum current capacity for this terminal?

The PCB-1071 is rated for an electric current of up to 100A.

4. Can I request a custom size or specification?

Absolutely. We offer full customization services including design, mold creation, and sampling based on your technical documents.

5. How are the terminals packaged for shipping?

We utilize professional carrier tape packaging to protect the SMD nut terminals from damage during transport and storage.

6. Do you handle the manufacturing process in-house?

Yes, we operate as a factory-direct manufacturer, handling production, inspection, and packaging ourselves.
