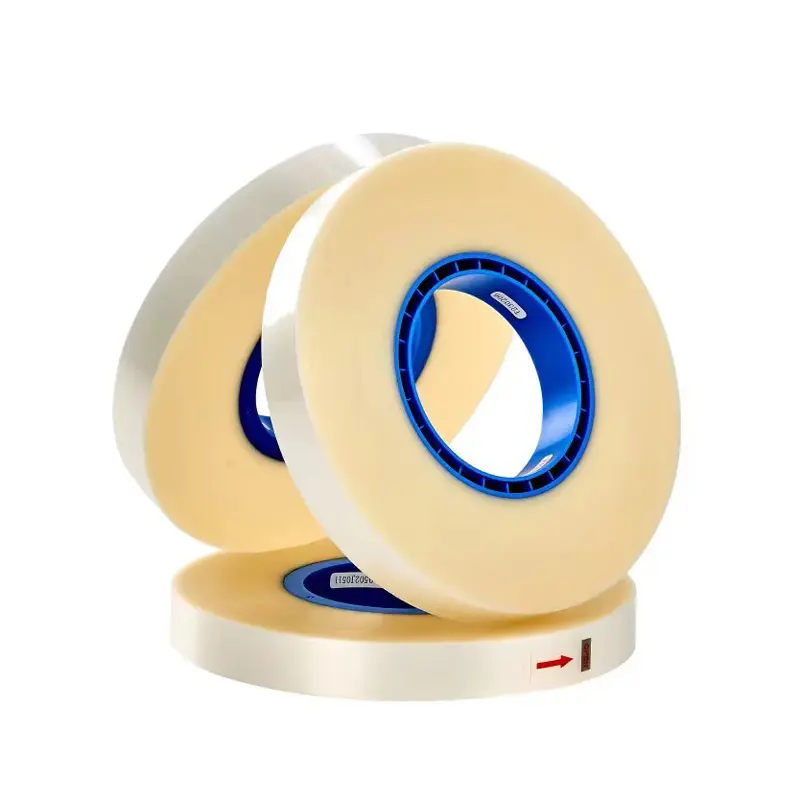

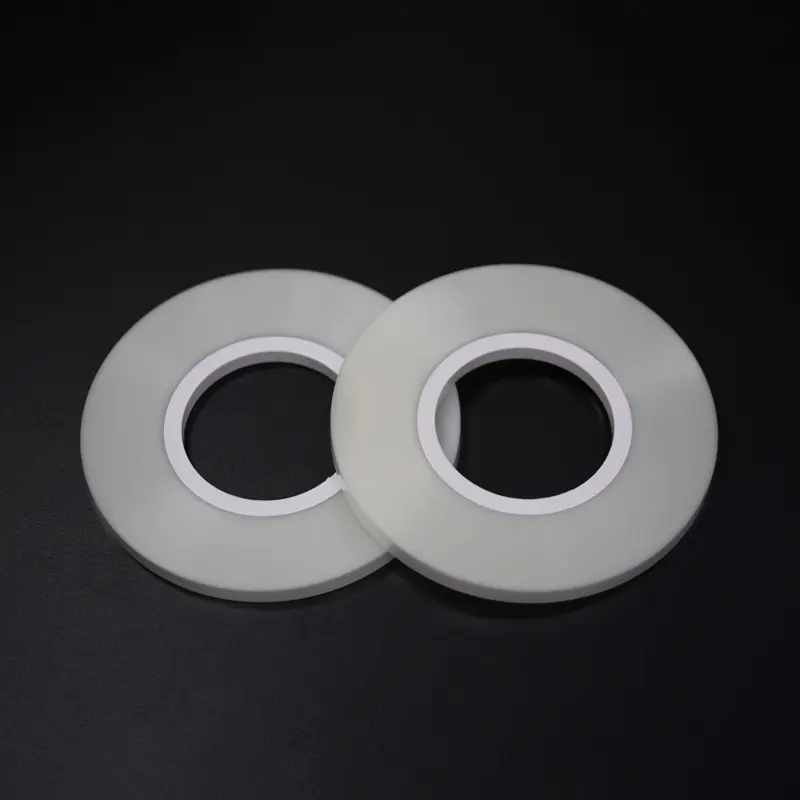

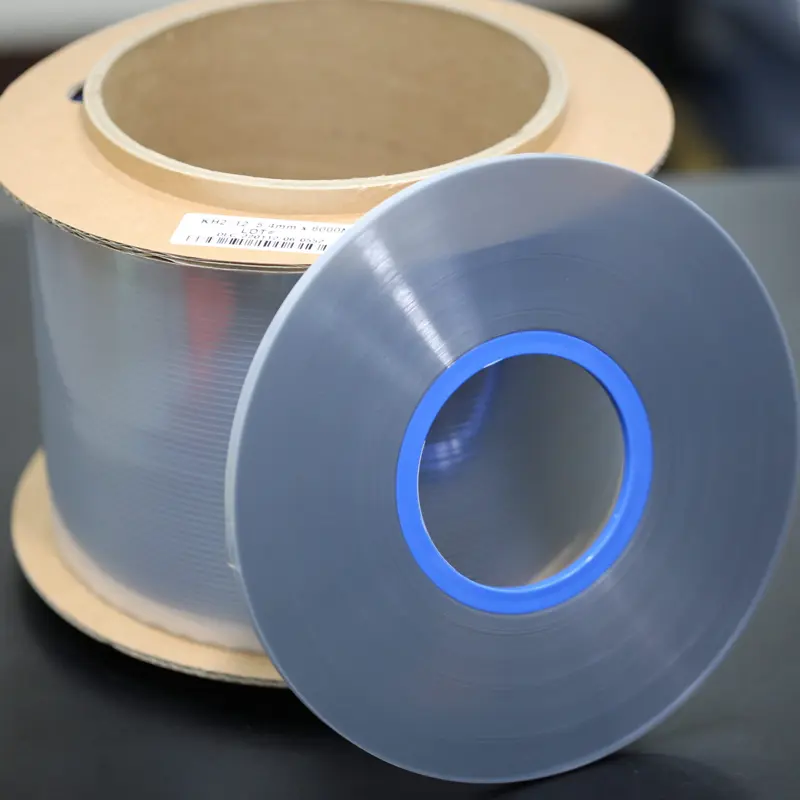

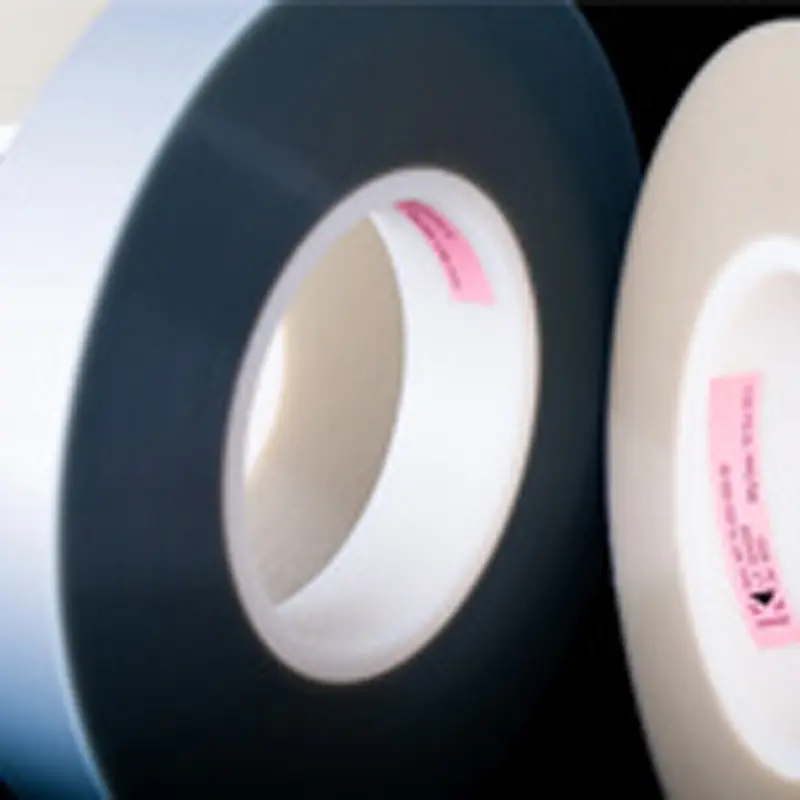

Well-Sealed Cover Tapes That Protect The SMD Electronic Components From Being Damaged

What is cover tape?
Cover tape refers to a ribbon band or strip used in the field of electronics packaging, which is used to pack and seal SMD electronic components carrier tape. This cover tape is usually a transparent plastic film, used to cover the IC integrated circuit, SMD inductance, SMD transformer, capacitor resistor, SMD connector, SMD hardware, SMD/SMT patch electronic components and other types of carrier tape packaging and used with the carrier tape. The cover belt is usually based on polyester or polypropylene film, and is usually based on polyester or polypropylene film and coated with different functional layers (anti-static layer, adhesive layer, etc.), which can be sealed on the surface of the carrier tapes under external force or heating to form a closed space and protect the electronic components in the carrier tapes.

Product Description

Product Description

Standard Size Specifications:

Carrier Tapes Width (W) Cover Tapes Width (W)
8mm5.4mm
12mm9.3mm
16mm13.3mm
24mm21.3mm
32mm25.5mm
44mm37.5mm
56mm49.5mm
72mm65.5mm
88mm81.5mm
104mm97.5mm

Sizes not listed above are also available. For carrier tapes with different sizes and types, we produce and supply diverse cover tapes to fit them. If you can't find the size you want or want to know more about our products, kindly please feel free to reach out. We are a high-tech enterprise with a professional technical team providing dedicated service to solve your problems and meet your component packaging needs.

Features and Advantages
Stable Peeling Strength

Ensures consistent pull strength with minimal change over time, providing reliability for automated pick-and-place processes.

High Visibility

Excellent transparency allows for easy inspection and identification of electronic components within the carrier tapes.

Superior Sealing

Provides robust sealing and anti-static properties across various materials including PS, PC, PET, ABS, and PP.

Frequently Asked Questions (FAQ)
Can you customize cover tape sizes not listed in the table?
Yes, we provide diverse cover tapes for various carrier tape sizes and types. Custom sizes are available upon request to meet your specific requirements.
Does the peeling strength change over time?
Our cover tapes are designed for stability, meaning there is very little change in peeling strength even after extended storage.
Is the cover tape compatible with different carrier tape materials?
Absolutely. Our cover tapes offer excellent sealing performance for PS, PC, PET, ABS, and PP materials.
How is the visibility of components ensured?
We use high-grade transparent materials that allow for clear visibility of electronic components inside the carrier tape for quality control.
Do your cover tapes have anti-static properties?
Yes, our cover tapes are engineered with anti-static properties to protect sensitive electronic components from ESD damage.
What industries are these products suitable for?
They are ideal for the electronics manufacturing industry, specifically for the SMT (Surface Mount Technology) packaging of components.
